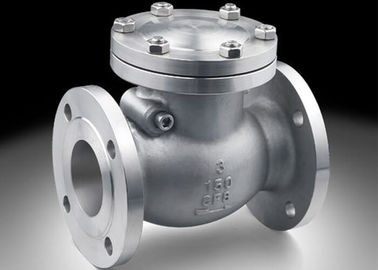

Name: Silent Stainless Steel Swing Check Valve API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K /DIN
Brand: Zhejiang JieYu Valve Co., Ltd.
Price: Negotiable USD
Availability: InStock

Large Image : Silent Stainless Steel Swing Check Valve API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K /DIN

Place of Origin:	Wenzhou China
Brand Name:	JIEYU
Certification:	API ISO Ts CE

Specification

Face to face according to DIN3202-K3.

Flange drilling according to ANSI125/150;DIN2501PN10/PN16;AS2129 Table E;JIS10K ect.

Working Pressure: PN10;PN16

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	7-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Mouth

Contact Now

Detailed Product Description

Pressure:	PN10 ~PN16	Body:	Cast Steel/WCB/WC6/stainless Steel
Standard:	API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K /DIN	Feature:	Non Return
Size:	DN15 ~DN1200	Application:	Oil, Gas, Water, Steam Etc.,
Highlight:	stainless steel swing check valve , swing type non return valve

Silent Stainless Steel Swing Check Valve API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K /DIN

Stainless Steel Swing Check Valve Application:

The Check valve is used for preventing the back-going of medium in pipelines and equipments, and the

pressure of medium will bring the result of opening and closing automatically.

When the medium is back-going, valve disc will automaticaly closed to avoid accidents.

Stainless Steel Swing Check Valve Standards

Design and manufacture as BS1868, ANSI B16.34
Face to face dimensions as ANSI B16.10
End flange dimension as ANSI B16.5
Pressure-temperature ratings as ANSI B16.34
Pressure test as API 598
Applicable Medium: water ,gas,oil,and other causticity medium.

Stainless Steel Swing Check Valve Application:

Valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of medium will bring the result of opening and closing automatically.

When the medium is back-going, valve disc will automaticaly closed to avoid accidents.

Main Parts and Materials
Number	Part Name	Material
1	Body	GGG50
2	Disc	SS304
3	Stem	SS304
4	Spring	SS304
5	Washer	PTFE
6	Washer	PTFE
7	Gasket	NBR
8	Hex nut	A193A

Test Pressure

Test Item		Shell Test		Seal Test		Back Seal Test		Air Seal Test
Medium		Water						Air
Unit		MPa	lbf/in2	MPa	lbf/in2	MPa	lbf/in2	MPa	lbf/in2
Pressure (Class)	150	3.1	450	2.2	315	2.2	315	0.5-0.7	60-100
	300	7.8	1125	5.6	815	5.6	815
	400	10.3	1500	7.6	1100	7.6	1100
	600	15.3	2225	11.2	1630	11.2	1630
	900	23.1	3350	16.8	2440	16.8	2440
	1500	38.4	5575	28.1	4080	28.1	4080
